詳細情報 |
|||
| CPU: | Intelの中心i3/i5/i7 | ラム: | 4GB/8GB |
|---|---|---|---|
| SSD: | 128G/256G | インタフェース: | RS232 ポート;USB ポート、RJ45、WIFI |
| タッチスクリーン: | 10ポイント容量容量画面 | 液晶パネル: | 17/19インチ |
| 輝度: | 300cd/平方メートル | 対比: | 3000:1 |
| 解決: | 1920*1080 | キャビネットの材質: | 厚さ1.0mm~1.5mmの金属 |
| カード容量: | 150部分 | 請求書受領者のキャパシティ: | 600個/1000個/1500個/2200個 |
| 印刷速度: | 最高:250mm/s | プリンタの解像度: | 203dpi ((8点/mm) |
| 紙幅: | 50mm/80mm/120mm | ||
| ハイライト: | Capacitive Touch 10 Point Self Checkout Kiosk,Cash Acceptor and Card Dispenser Self Service Kiosk,TFT LCD Display Payment Kiosk |
||
製品の説明

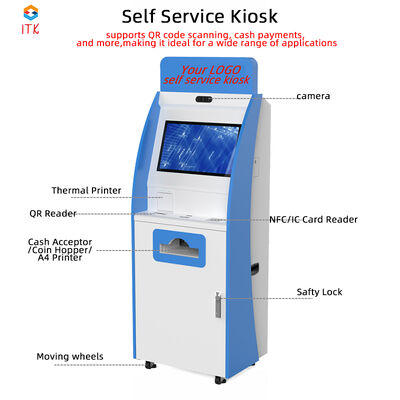

Self Check Out Machine Financial Equipment Photo Printing Kiosk
Advanced self-service kiosk with cash acceptor and card dispenser for various commercial applications.
Product Overview
Hot selling self-service kiosk designed for financial transactions, photo printing, and payment processing with integrated cash handling and card dispensing capabilities.
Key Features
- Multi-functional financial equipment kiosk with touch screen interface
- Integrated bill cash dispenser and payment processing
- ATM cash deposit machine functionality
- Photo printing kiosk capabilities
- Professional-grade construction for commercial use
Application Scenarios
This versatile self-service kiosk is ideal for various environments including:
- Retail stores for quick checkouts
- Restaurants for food ordering
- Airports for self-check-in services
- Hospitals for patient registration
- Hotels for guest check-in and check-out
Technical Specifications
| Component | Specification |
|---|---|
| Mother Board CPU | Intel Core I3/I5/I7 or Android (optional) |
| Memory | DDR3/DDR4 4GB/8GB |
| Storage | SSD 128G/256G |
| Interfaces | RS232 Ports, USB Ports, RJ45, WIFI |
| Touch Screen | 10 point capacitive screen |
| LCD Panel Size | 17/19 Inch |
| Brightness | 300cd/m² |
| Contrast Ratio | 3000:1 |
| Resolution | 1920×1080 |
| Cabinet Material | Cold-rolled Metal (1.0mm~1.5mm thickness) |
| Coating | Oil painting/Powder coated |
| Card Reader | Magnetic card/IC Card/RF Card |
| Card Dispenser Capacity | 150 pieces |
| Passport Reader | OCR Processing ICAO Doc 9303 |
| Bill Acceptor Capacity | 600Pcs/1000Pcs/1500Pcs/2200Pcs |
| Thermal Printer Speed | Max: 250mm/s |
| Printer Resolution | 203dpi (8dots/mm) |
| Paper Width | 50mm/80mm/120mm |
| Barcode Scanner | Newland/Honeywell/Motorola (1D & 2D) |
| Operating System | Windows/Linux/Android |
| Additional Peripherals | Coin Acceptor/UPS/WIFI/Webcam/Banknote Dispenser |
Packaging and Delivery
Shenzhen iTouch Kiosk Technology Co., Ltd
Contact us to start your project today!
Company Profile

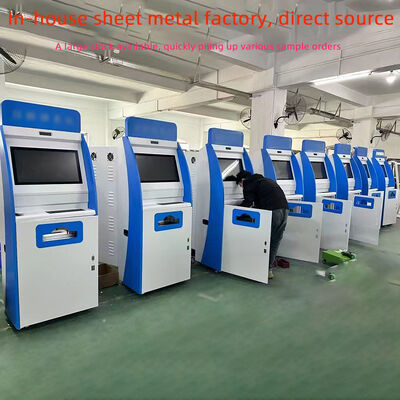

Established in 2008, Shenzhen iTouch Kiosk Technology Co., Ltd. specializes in the development and manufacturing of digital signage, self-service kiosks, and customized kiosks. Our comprehensive in-house capabilities include sheet metal production lines, hardware and software R&D teams, and rigorous quality control systems, enabling us to deliver high-quality, cost-effective products to clients worldwide.
Our products are widely used in various industries including retail, hospitality, transportation, healthcare, and education. With a global presence spanning over 100 countries including the United States, Spain, Canada, Brazil, and Singapore, we are committed to providing innovative and tailored solutions that meet the evolving needs of our customers.
Certifications
Customer Feedback
Frequently Asked Questions
Are you a factory or trading company?
We are a factory-based company, specialized in all kinds of OEM/ODM kiosks. We have our own sheet metal factory.
What are your payment methods?
We accept most payment methods, but mainly accept Trade Assurance orders, T/T, L/C, Western Union, and PayPal.
What is your product warranty?
1 Year warranty with lifetime technical support.
What is your product lead time?
Product in stock: 1-3 days. Customized sample order: 7-15 days. Bulk order: 15-20 days.
What is your MOQ?
Minimum order quantity is 1 piece.

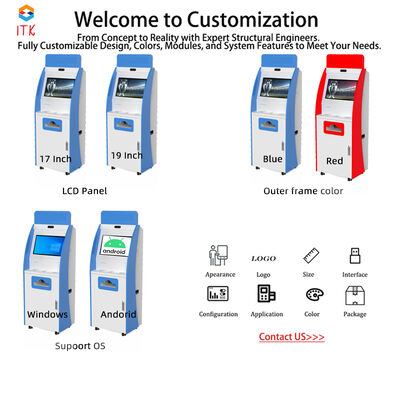

Is it possible to have my logo on the product?
Yes, we can use your logo branding for customized orders.
What is the order process?
Inquiry → Design Confirmation (including technical and design details) → Sign a contract → Payment → Production → Shipping
この製品の詳細を知りたい
