詳細情報 |
|||
| タッチスクリーン: | 静電容量式タッチ 10 ポイント | 画面サイズ: | 15" 17" 19" 22" 32" 42" 55"任意 |
|---|---|---|---|
| オペレーティング·システム: | Android/Windows 7/8/10(オプション) | CPU: | Intel I3/I5/I7 |
| ラム: | 4GB/8GB/16GB | SSD: | 128/256GB |
| 電源: | 110V〜240V/50HZ〜60HZ | インタフェース: | RS-232、USB |
| 画面解像度: | 4096x4096 | モニターの明るさ: | 300cd/平方メートル |
| モニターのコントラスト: | 1000:01:00 | 解像度を監視します: | 1280*1024/1920*1080 |
| カードの種類: | 磁気カード/ICカード/RFカード | 数字キー: | 数字キー 10 個、ファンクション キー 6 個 |
| 現金受入能力: | 600個/1000個/1500個/2200個 | ||
| ハイライト: | Capacitive Touch 10 Point Self Service Kiosk,Custom Color ATM Kiosk Machine,Floor Standing Payment Kiosk |
||
製品の説明

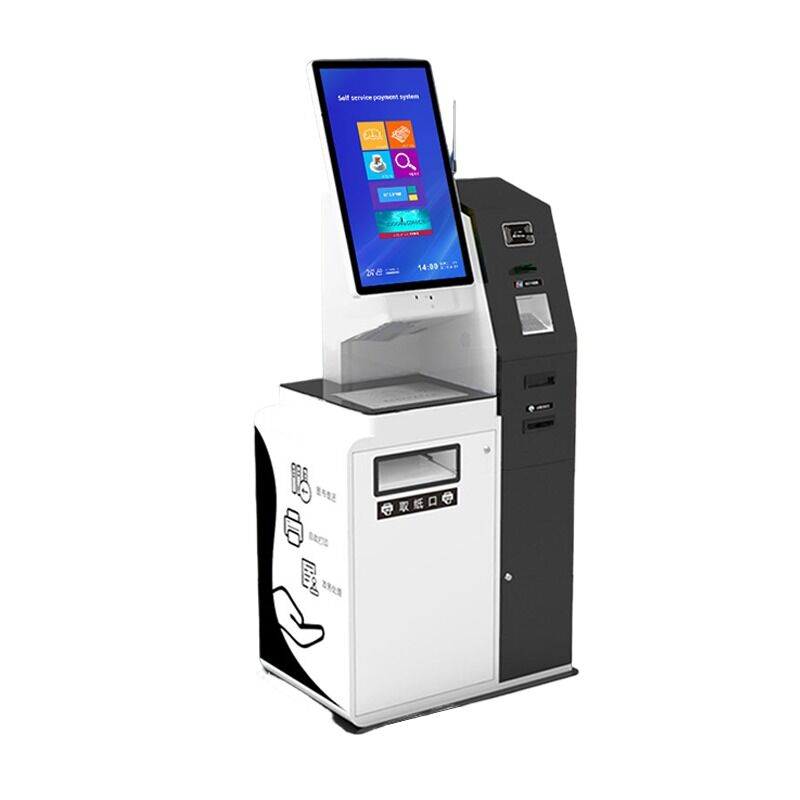

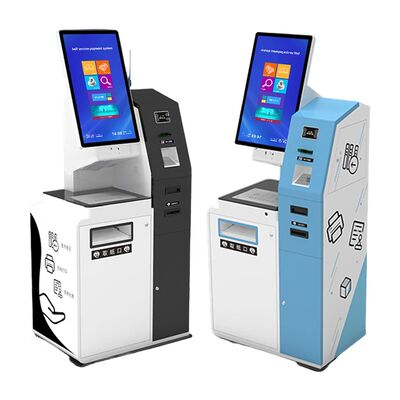

Self Service ATM Kiosk Machine with Bills Dispenser and Card Touchscreen Payment
A comprehensive self-service banking solution featuring advanced bill dispensing, multi-card payment processing, and intuitive touchscreen interface designed for modern financial institutions.
Technical Specifications
| Component | Specifications |
|---|---|
| Computer |
Motherboard: Rugged industrial grade CPU: Intel I3/I5/I7 RAM: 4GB/8GB/16GB SSD: 128/256GB Power Supply: 110V~240V/50HZ~60HZ Interface: RS-232, USB |
| Touch Screen |
Screen Size: 17"/19"/22"/32"/43"/55" Screen Type: Capacitive with multi touch points Resolution: 4096x4096 |
| Monitor |
Screen Size: 17"/19"/22"/32"/43"/55" Brightness: 300cd/m2 Contrast: 1000:1 Resolution: 1280*1024/1920*1080 |
| Card Reader | Card Type: Magnetic card/IC Card/RF Card |
| Metal Pinpad |
Number Keys: 10 Number Keys, 6 Function Keys Encryption Certification: PCI/VISA |
| Cash Acceptor |
Brand: MEI/CPI/ITL/JCM Capacity: 600Pcs/1000Pcs/1500Pcs/2200Pcs |
| Receipt Printer |
Brand: Custom/Epson/Star Auto-cut: Included Width of Paper: 60mm/80mm/120mm |
| QR Code Reader | Brand: Honeywell/Motorola |
| Power Supplier |
Input & Output: Input 110-240VAC; Output 24V5A 12V3A Brand: Meanwell |
| Enclosure |
Material: Cold-rolled Metal with 1.5mm thickness Coating: Powder coated Color and Logo: Upon request |

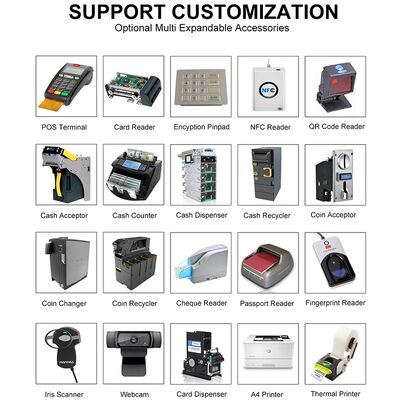

| Other Peripherals | Optional: Cash dispenser, coin acceptor, coin hopper, A4 laser printer, passport reader, fingerprint reader, webcam, card dispenser and more available upon request |
Additional Product Images
Key Features
- Rugged industrial-grade computer components for reliable 24/7 operation
- High-resolution capacitive touchscreen with multi-touch capability
- Multi-card reader support (Magnetic, IC, and RF cards)
- PCI/VISA certified metal pinpad for secure transactions
- High-capacity cash acceptor from leading brands
- Professional receipt printing with auto-cut functionality
- Durable cold-rolled metal enclosure with powder coating
- Flexible customization options for specific banking requirements
